Overlay Operations Continued

Below is additional detail on overlay operations in ArcMap with examples.

Intersection

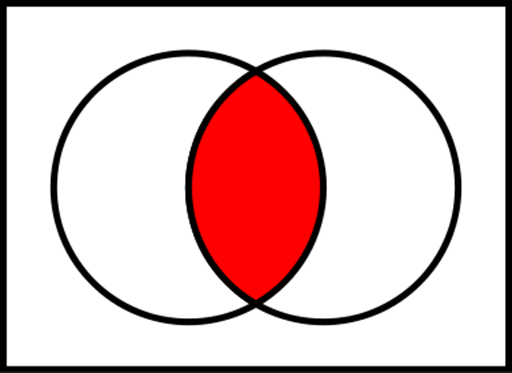

The Intersect tool finds the intersection of features between two or more layers. This tool is used frequently.

Intersection

The Intersect Tool maintains the attributes for both intersecting features.

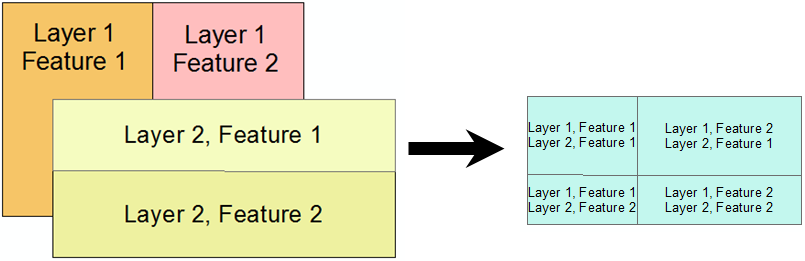

Intersect Example

Case Study: Distribution of a Rare Fungal Species

An example of using intersection would be if we wanted to find the habitat for a rare species such as the mushroom shown below. If we know that the species requires requires:

We could now take a layer that contained features of Klamath Mixed Conifer Forests and another that showed the annual precipitation was over 50 inches and intersect the two. The result would be the habitat for the mushroom.

Rare Fungal Species

Union

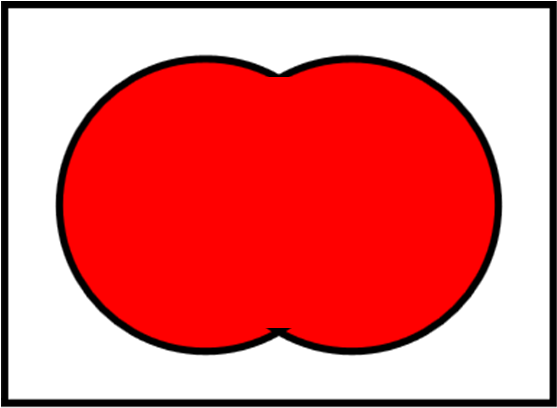

The image below shows a "true" union as you may have learned in geometry.

Union

The Union tool in ArcMap combines the features from one or more layers into a single layer. In other words, it creates the "Union" of two layers, rather than a spatial union as shown above. The resulting features are the unique areas between the two layers. The Union tool in ArcGIS is not used much but is presented here to prevent confusion with the "Dissolve" tool described below.

ArcMap's Union Tool does not perform a Union as shown above, for this you need to use "Dissolve" in the next section.

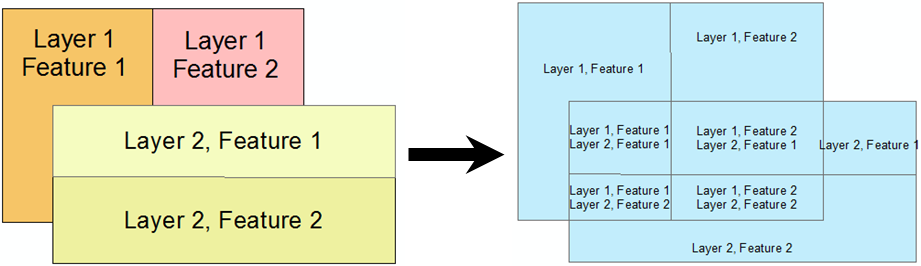

Union Example



Dissolving

This tool dissolves features in a layer together, which can be based on a common attribute value or all features together. This is a proper union.

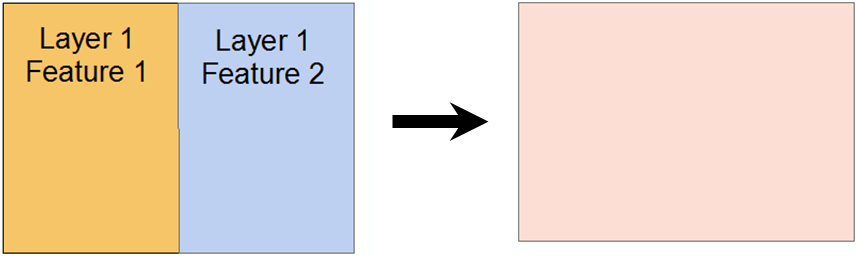

Dissolve

Dissolving is helpful when removing unneeded information, and typically should be executed prior to applying an area based selection. An example of this would be to combine detailed parcel descriptions into general land use categories. Below is an image of the Eureka waterfont that has been symbolized based on general land use such as Commertial, Inductrial, and Residential.

Map of the Eureka waterfront that has been symbolized based on general land use categories.

Below is a new dataset where the parcels have been combined (their boundaries "disolved" in Esri terminology) into larger polygons that have the same land use type.

Map of a waterfront after disolving based on land use.

Clip

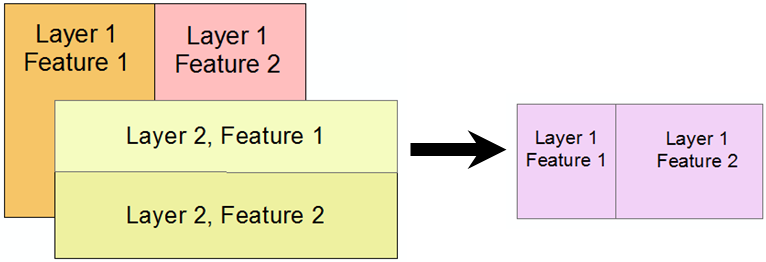

The Clip tool "clips" one layer with all the features from another.

Clip Example

The Clip Tool only maintains the attributes for the original layer.

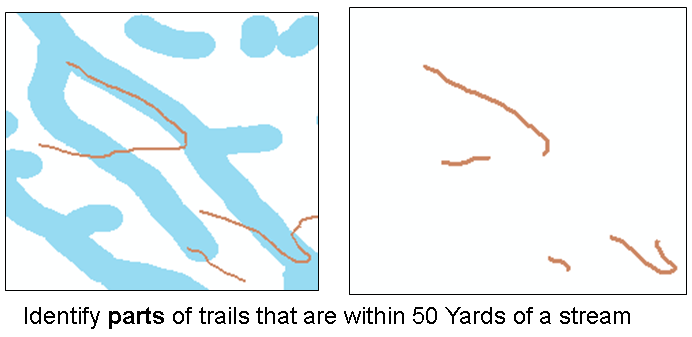

Clipping Trails Layer to Streams Buffer

Clip is commonly used and is closely related to "Intersect". Notice that the only difference is that the attributes are only maintained for the first layer.

Clip Example

Erase

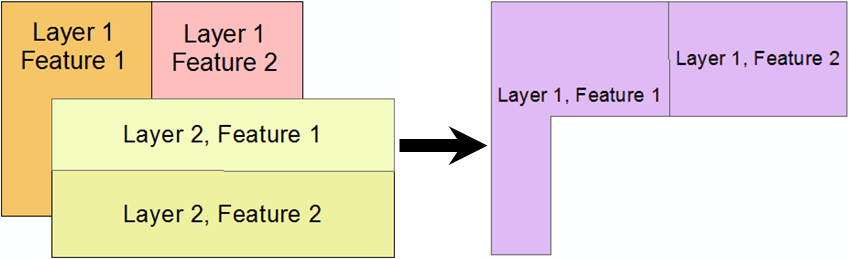

The Erase tool uses one layer to "erase" area from another layer.

Erase Example

Case Study: Find Legal Grazing Land (Post Ordinance).

An example of "Erase" would be to find grazing land near a stream if you were required to restrict grazing to be at least 100 meters from the stream. You could buffer the stream to 100 meters and then "Erase" the stream buffer layer from the original grazing area layer.

Cows Grazing

The following tools are used less frequently than those above but come in handy once in a while.

Split

The Split tool "splits" up a layer into multiple layers based on the features in the second layer.

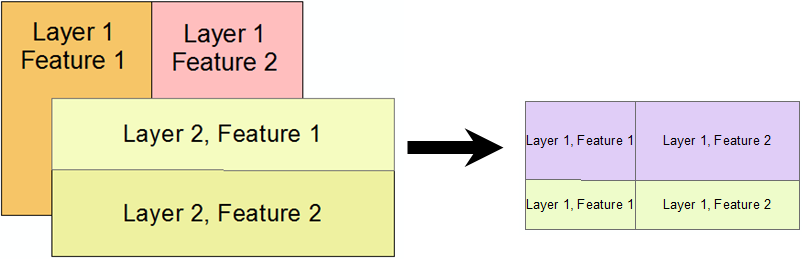

Split Example

Identify

The Identify Tool "identifies" the features in one layer that overlap with features in another layer.

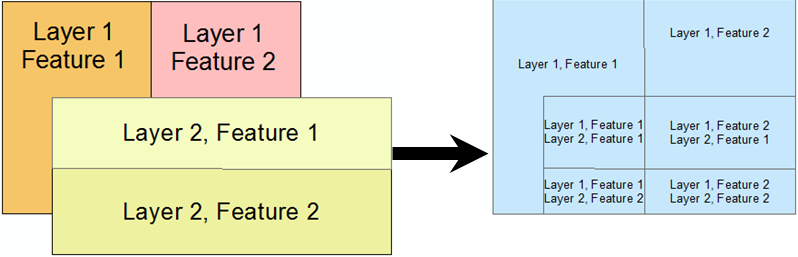

Identify Example

Symmetric Difference

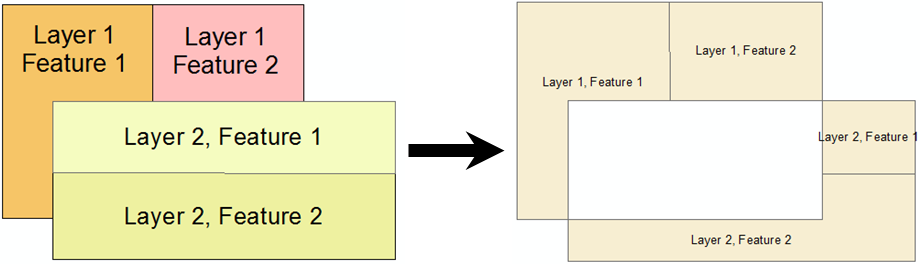

The Symmetric Difference tool finds the area of features that are in one of two layers and not in the other layers.

Symmetric Difference Tool

Update

The Update tool appears to crop the features in one layer to avoid features in another layer:

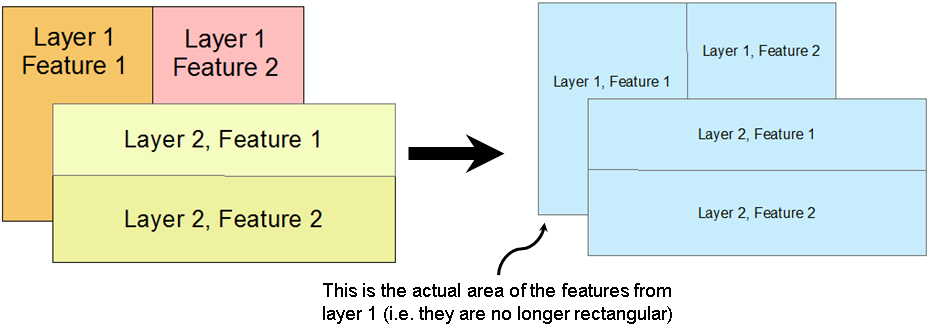

Update Example

Append and Merge

Both the Append and Merge tools combine vector layers together without changing the spatial data.
